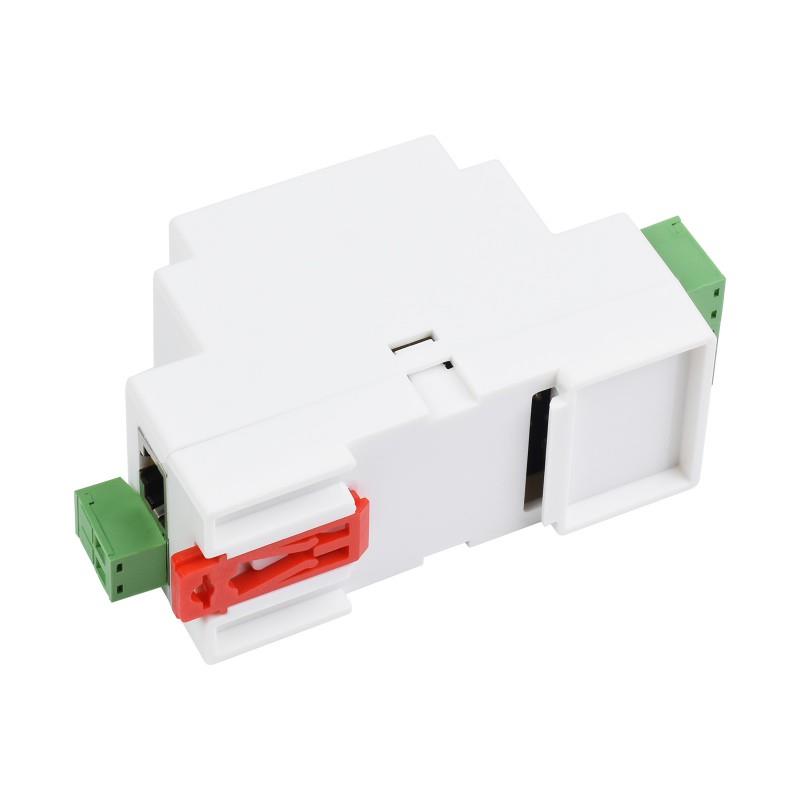

Waveshare 8-Ch RS485 To RJ45 Ethernet Serial Server 8 Channels...

When used as JSON data acquisition gateway, the devices can be connected to data acquisition instruments through RS485 connection, then acquire data automatically, convert the data into JSON format, and finally post it to server. This is an RS485 device data collector/IoT gateway specially designed for the industrial environment, which combines serial server, Modbus gateway, MQTT gateway... Waveshare RS485 TO ETH (C) u2013 industrial RS485-to-Ethernet (RJ45) serial... The module features RS485 and Ethernet port(POE function is optional), uses screw terminals for power input. The Industrial Serial Server Converter is very suitable for the collection of various RS485 instruments and sensors in the industrial field, including the collection of the local network or the autonomous collection of uploading to the cloud server. It adopts the rail-type installation, which is compact and easy to install. 4., 0 out of 5 stars Best Sellers Rank #220 in Serial Adapters Date First Available September 24, 2022 It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring., ., ., Bi-Directional Transparent Data Transmission Between RS485 And Ethernet Multi Hosts Roll-Polling Support Different Network Devices Will Be Identified And Responsed Respectively,No More Crosstalk Issue While Communicating With Multi Network Devices User-Defined Heartbeat/Registration Packet Easy For Cloud Communication And Device Identification NTP Protocol Support Getting Network Time Info For Serial Output Or Data Upload Multi Configuration Methods Supports Web Browser Configuration, Obtaining Dynamic IP Via DHCP,DNS Protocol Connected Domain Server Address Interface Introduction Outline Dimensions Resources & Services Wiki: RS485_TO_ETH_(B) Selection Guide UART TO ETH RS485 TO ETH RS485 TO ETH (B) RS485 TO WIFI/ETH RS232/485 TO ETH 2-CH-UART-TO-ETH ETHERNET RJ45 Ethernet 10/100Mbps auto-negotiation WIFI interface - 802.11b/g/n 2.4GHz - UART Type UART RS485 RS232+RS485 (allows concurrent operation) UART Baudrate 600bps~460.8Kbps 600bps~230.4Kbps 300bps ~ 115.2Kbps 300bps ~ 460.8Kbps 600bps~230.4Kbps 300bps~921.6Kbps Hardware flow NOT supported supported NOT supported Data bit 5, 6, 7, 8 Stop bit 1, 2 Parity bit None, Even, Odd, Space, Mark INTERFACE PROTECTION Power supply reverse-proof, ESD protection, anti-surge Ethernet 1.5KV electromagnetic isolation RS485 - 2KV ESD protection, 2.2KΩ pull up/down registers 2KV anti-surge anti-surge, lightningproof, over-current protection 2KV ESD protection, 2.2KΩ pull up/down registers - Other - - - - lightningproof, over-current protection - OPERATING MODE Type TCP Server, TCP Client, UDP Server, UDP Client, etc. Converter Manual Waveshare 8-Ch RS485 To RJ45 Ethernet Serial Server 8 Channels... Arduino Modbus It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, etc. RS485 To Ethernet Converter Waveshare - Industrial Serial Device Server With Modbus Gateway
